Introduce:

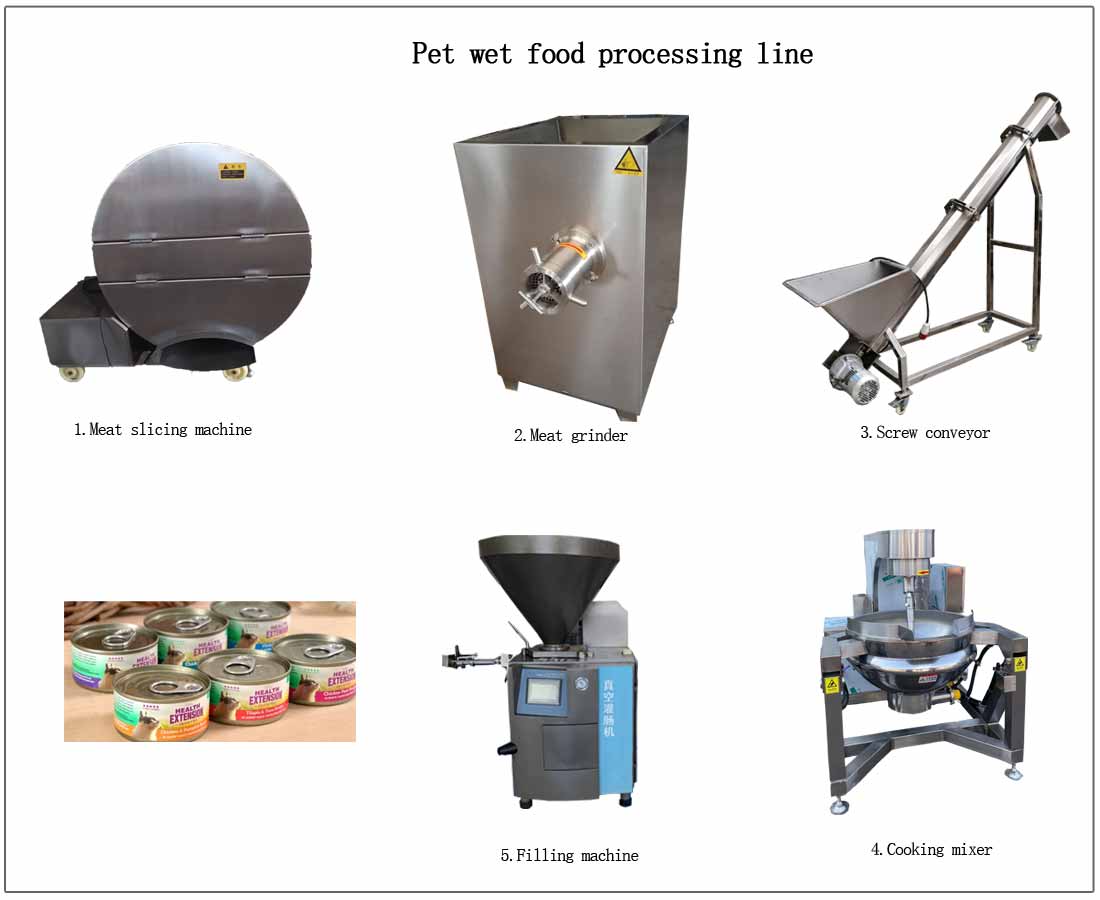

The meat sauce processing line typically includes the following machines:
1. Frozen meat slicing machine
2. Frozen meat grinding machine
3. Chopping machine
4. Stuff mixing machine
5. Cooking machine
6. Filling machine
You can select all or some of these machines based on your specific requirements. Additionally, we can incorporate a PLC control system to enable centralized control of all the machines from a single screen. Our machines are versatile and can be used to produce a variety of products, including pet wet food, meat sauce for human consumption, and other meat-based products.
Machine specific information

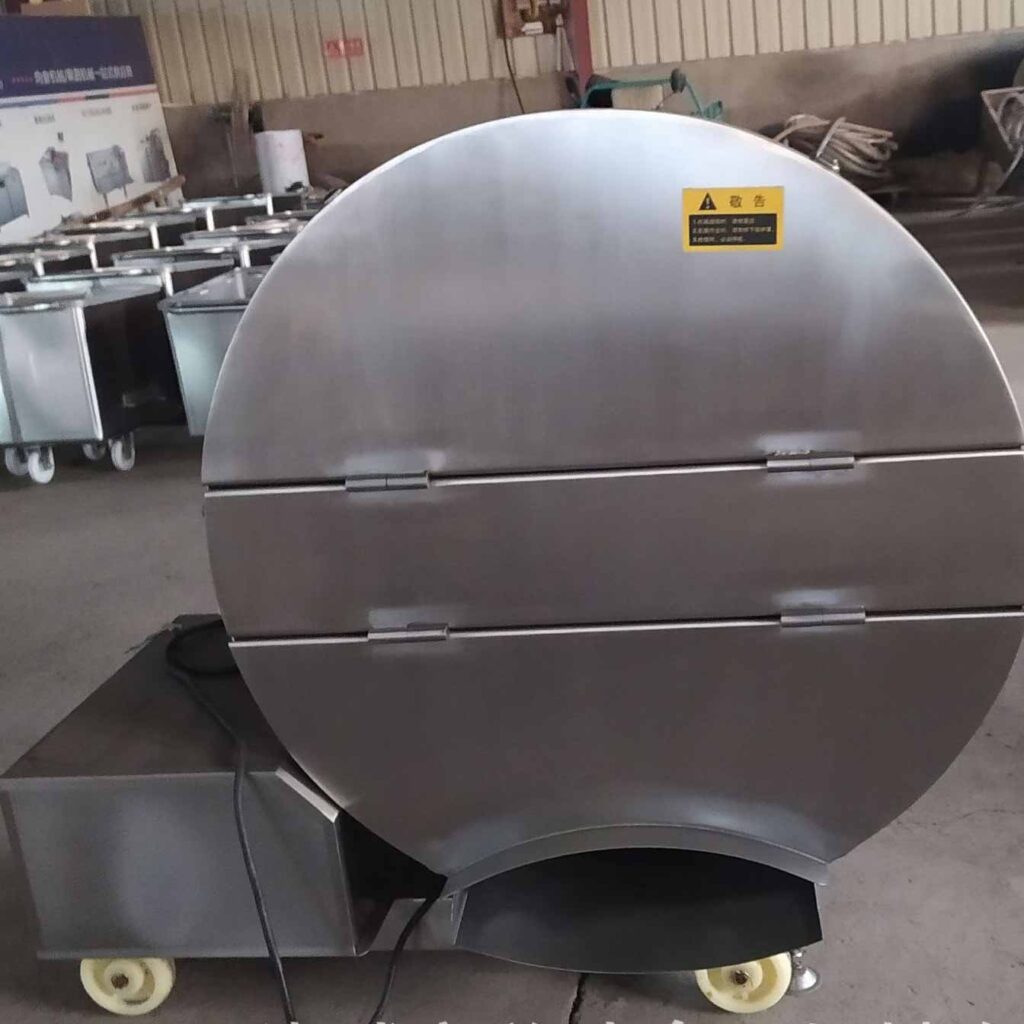

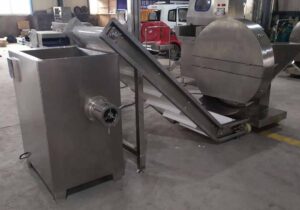

1. Meat slicing machine
A meat slicer, also known as a meat planer or meat slicer machine, is a kitchen appliance used to slice or shave meat into thin, uniform slices. It consists of a sharp blade attached to a motorized system, allowing for efficient and precise slicing. If the frozen meat is big, we need this machine to cut it into small pieces before grinding.
| Model | Power | Slicing thickness | Dimension |
| BST-PRJ960 | 3KW | 5-10mm | 1350*650*1350mm |

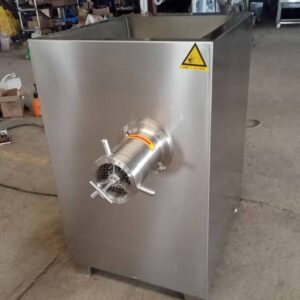

2. Meat grinder

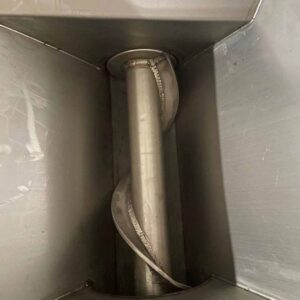

The meat grinder relies on the screw to push the raw meat in the hopper box to the pre-cutting plate. Through the rotation of the screw, the reamer and the orifice plate produce relative motion, so that the raw meat is cut into granular shapes to ensure the uniformity of the meat filling.The minced meat particle can be φ6/φ8/φ10φ12/φ16/φ18/φ20φ22,it can be customized.
|
Model |
Capacity(kg/h) | Power( kw) | Cutter diameter(mm) | Cutter hole diameter(mm) | Dimension(mm) | Weight(kg) |
| BSTJRJ-D100 | 300-600 | 4 | 100 | Φ3-φ25 | 900×500×950 | 280 |
| BSTJRJ-D120 | 500-1000 | 7.5 | 120 | Φ3-φ25 | 950×550×1050 | 350 |
| BSTJRJ-D130 | 800-2000 | 11 | 130 | Φ3-φ25 | 1050×750×1300 | 600 |
| BSTJRJ-D160 | 1000-2000 | 15 | 160 | Φ3-φ25 | 1600×1080×1460 | 800 |
| BSTJRJ-D200 | 1000-5000 | 27 | 200 | Φ3-φ25 | 1700×1400×1600 | 1200 |
| BSTJRJ-D250 | 2000-4500 | 37 | 250 | Φ3-φ25 | 1800×1500×1600 | 1400 |
| BSTJRJ-D300 | 2000-6000 | 55 | 300 | Φ3-φ25 | 1900×1500×1800 | 1600 |

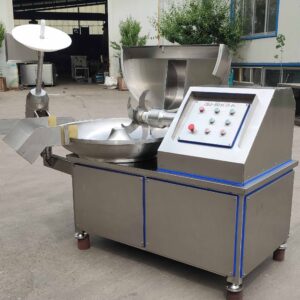

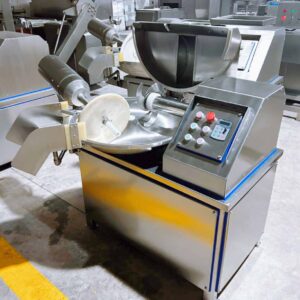

3. Chopping machine
The chopping machine can chop and mix the raw meat into fine mince, and stir other auxiliary materials evenly to prevent the myoglobin, fat and other nutrients in the raw meat from being oxidized and destroyed, thereby retaining the original color and texture to the greatest extent. Fragrance, taste and various nutrients. Through chopping, the fineness of the product and the affinity with water are improved, and the elasticity of the product is improved. Used for processing and crushing of meat, fish, fruits, vegetables, nuts, etc.
|
Model |
Bolw volume(L) |
Capacity (kg/time) |
Knife speed（RMP） |
Bowl speed（RMP） |
Discharger speed（RMP） |
Total power(kw) |
Dimension(mm) |
Weight(kg)
|
|
BSTZB-20 |
20 |
10 |
1500/3000 |
8/12 |
无 |
5 |
780×600×850 |
300 |
|
BSTZB-40 |
40 |
20 |
1500/3000 |
8/12 |
无 |
5.1 |
1100×860×950 |
500 |
|
BSTZB-80 |
80 |
65 |
1500/3000 |
8/12 |
83 |
12.65 |
2160×1370×1350 |
1200 |
|
BSTZB-125 |
125 |
80 |
1500/3000 |
8/12 |
83 |
25.35 |
2120×1550×1350 |
1800 |
|
BSTZB-200 |
200 |
160 |
750/1500/3000 |
4/8/12 |
83 |
57.25 |
2350×2200×1910 |
4000 |
|
BSTZB-330 |
330 |
200 |
750/1500/3000/4500 |
4/8/12 |
83 |
81.98 |
2520×2130×2360 |
5000 |

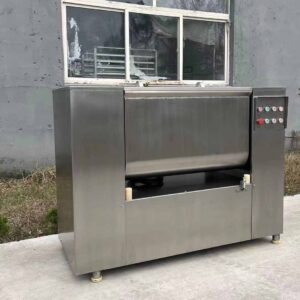

4. Stuff mixing machine
The stuffing machine can stir and mix the raw meat with starch, auxiliary materials, water, etc. The stuffing machine is an essential equipment for mixing ingredients, with high efficiency and easy operation. It is the equipment for making sausages, balls, and stuffing.
a. The whole machine is made of food-grade stainless steel, which is reliable, durable, and easy to clean.
b. It adopts a parallel double-shaft structure and sloping plate blades. While the material is turned in the material box, it also makes a circular motion. The material is fully mixed and evenly mixed to achieve the most ideal mixing effect.
c. Free control of positive and negative rotation, automatic discharge.
d. The main shaft bearing is separated from the material box, completely eliminating the pollution of the bearing oil to the material
|
Model |
Volume(L) |
Power(kw) |
Reference input amount(kg) |
Stirring speed (r/min) |
Dimension(mm) |
Weight(Kg) |
|
JB50 |
50 |
0.75 |
20 |
75/67 |
740×810×775 |
180 |
|
JB100 |
100 |
1.75 |
60 |
84/42 |
1200×682×1060 |
240 |
|
JB150 |
150 |
2.2 |
120 |
84/42 |
1280×720×1100 |
290 |
|
JB200 |
200 |
3.7 |
160 |
84/42 |
1350×820×1350 |
400 |
|
JB300 |
300 |
4.4 |
240 |
84/42 |
1480×925×1500 |
600 |
|
JB650 |
650 |
6 |
500 |
84/42 |
1600×1100×1400 |
730 |
|
JB1200 |
1200 |
11 |
900 |
84/42 |
1930×1490×1700 |
900 |
5.Cooking machine
It can produce kinds of sauce.please click the photo to get more information
6. Filling machine

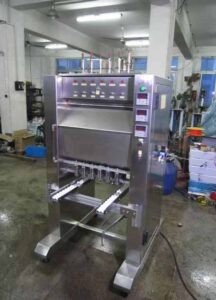

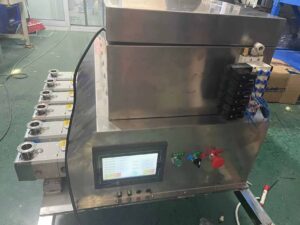

There are Cylinder filling machine and rotary pump filling machine ,we can select according to your product.We need to customize the machine according to your requirement
